Tracing Landscapes
Field Study

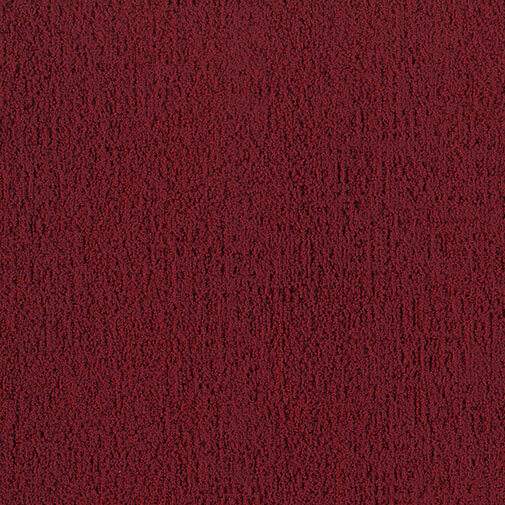

FSY109 Slope Line
Sample photo, colours may vary slightly.
Key Data
| Construction | Tufted, Textured Loop Pile |
| Face Fibre | ECONYL® Solution Dyed 100% recycled Nylon |
| Stain Resist | Inherently stain resistant fibre |
| Finished Face Weight | 560 g/m2 |
| Gauge | 47.2 / 10 cm |
| Tuft Density | 207,874 /m2 |
| Finished Pile Height | 2.9 mm |
| Standard Backing | WellBAC® Comfort 95% recycled open cell polyurethane cushion backing. Available with TractionBack® on request |
| Nominal Total Thickness | 9.4 mm |
| Tile Size | 50 cm x 50 cm |
| Nominal Total Weight | 4000 g/m2 |
| Tiles per Box | 20 (5m2 ) |
Key Data
| Flammability (Euroclassification EN13501:1-2018) | Class Bfl – s1 |
| Flammability (Radiant Panel ASTM-E-648) | Class 1 |
| Flammability (Hot Metal Nut BS4790) | Low Radius of Char |
| Use Classification (EN 1307) | Class 33 Heavy Commercial Use |
| Castor Chair (BS EN 985:2001) | Class A – Intensive use (r value ≥ 2.4) |
| Static Electricity (ISO 6356) | Pass ≤ 2.0 KV Permanent Conductive Fibre |
| Impact Sound (ISO 10140-3) | 33 dB ΔLw |
| Sound Absorption (ISO354) | 0.30 (H) Class D |
| Alpha p values | 125Hz 0.00, 250Hz 0.05, 500Hz 0.30, 1000Hz 0.25, 2000Hz 0.30, 4000Hz 0.35 |
| 70% recycled content by total product weight |
| M/PACT™ Carbon Offset Floors, 4.21 kg CO₂ e/m² Embodied Carbon (EPD calculation A1-A3) Cradle to Gate footprint 100% off set |
| Manufactured in location certified to: ISO9001:2015 / ISO14001 / ISO45001 / ISO50001 using renewable electricity |
| 15 year wear warranty |
| Lifetime Antistatic guarantee |
| Latent Defects guarantee |
